HOGWORKZ® Chrome Saddlebag Guard Eliminator Kit for Harley-Davidson® Touring '14-'24

Upgrade the look of your 2014–2024 Harley-Davidson Touring model with the HOGWORKZ® Chrome Saddlebag Guard Eliminator Kit and say goodbye to bulky OEM saddlebag guards. This step-by-step installation guide walks you through safely removing your seat, saddlebags, and side covers to access the factory guard mounting points, then removing the original hardware and guards with the proper tools. You’ll learn how to correctly position and secure the eliminator brackets using your existing OEM hardware for a clean, seamless transition from the frame to the lower saddlebag support brackets. The result is a streamlined custom appearance that enhances your bike’s profile without complicated modifications. Whether you’re refreshing your Touring bike’s style or completing a full custom build, this guide ensures a smooth, confident installation from start to finish.

QQ20260202-151759

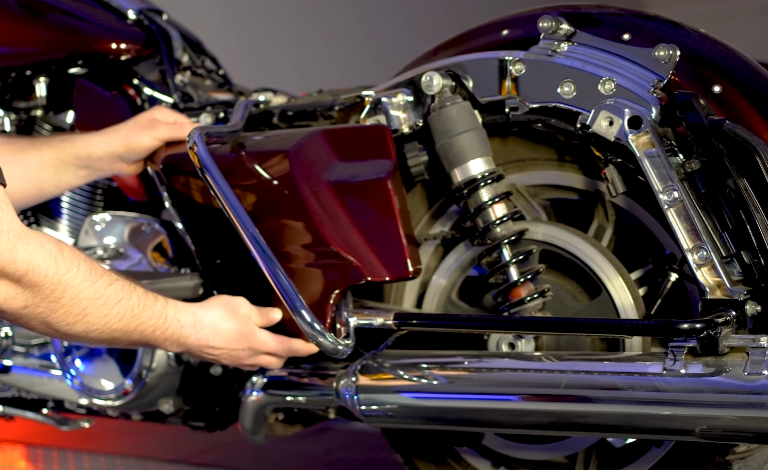

1. Access the Mounting Points:

  • Remove the Seat: Unscrew the rear seat bolt and set the seat aside.
  • Remove the Saddlebags: Open the bags, release the internal mounting pins/levers, and lift the bags off the bike.
  • Remove the Side Covers: Gently pull the side covers away from the frame grommets to expose the lower guard mounts.
QQ20260202-152040

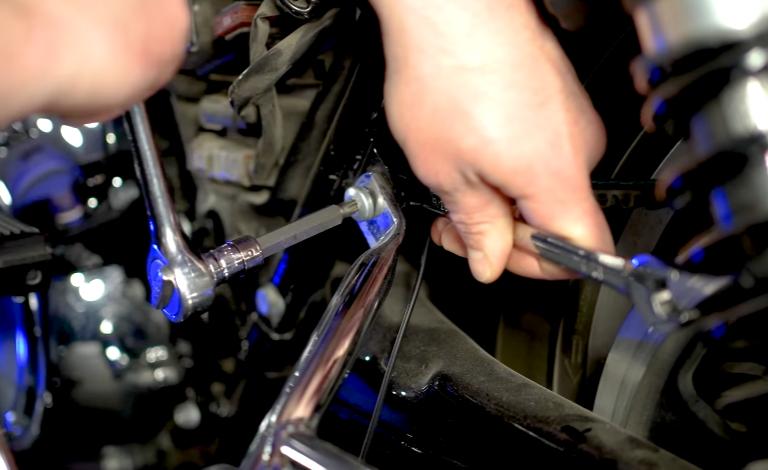

2. Remove the OEM Saddlebag Guards:

  • Lower Connection Bolt: Use a 3/16" Allen and a 7/16" wrench to remove the bolt connecting the guard to the lower frame rail. Keep this hardware.
  • Rear Mount: Use a T45 Torx on the front and a 9/16" wrench on the backside to remove the main support bolt. Keep this hardware.
  • Upper Tab: Remove the final T45 screw located at the top mounting tab.
  • Extract Guard: Slide the heavy OEM guard out and away from the bike.
QQ20260202-152338

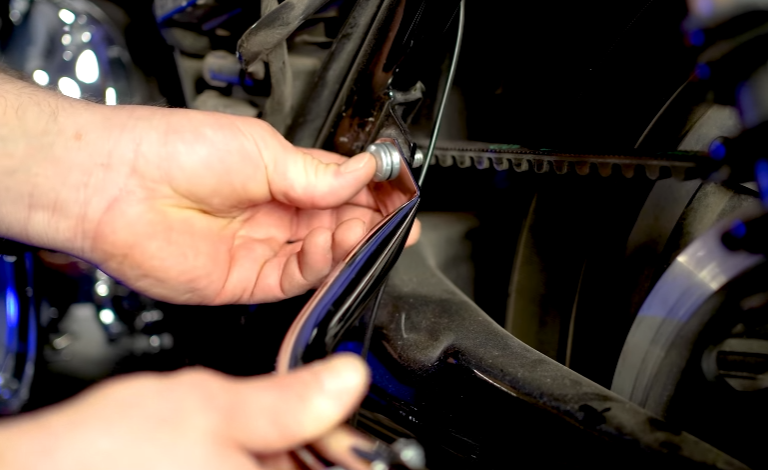

3. Install the Eliminator Bracket:

  • Positioning: Slide the new Eliminator piece over the frame rail where the old guard was seated.
  • Start Hardware: Reinstall the T45 screw and nut into the upper mounting tab first.
  • Align Lower Mount: Reinstall the OEM lower bolt and nut through the bracket and frame rail.
  • Tighten: 1. Tighten the upper T45 mounting tab first to ensure proper seating. 2. Tighten the lower bolt using your 3/16" Allen and 7/16" wrench.
QQ20260202-152716

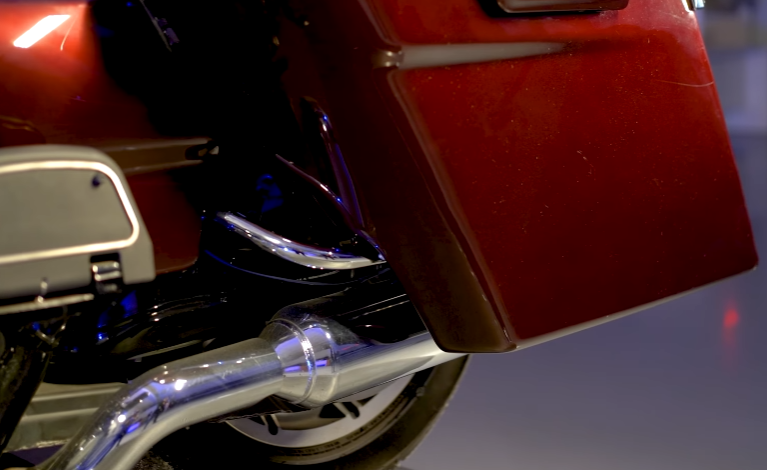

4. Reassemble the Bike:

  • Snap the side covers back into their rubber grommets.
  • Reinstall your saddlebags onto the mounts.
  • Secure the seat back onto the motorcycle.
